Quick Release Hose Clamps
Home
/
Products
/
Quick Release Hose Clamps
American Type Quick release hose clamp
American Type Quick release hose clamp
American Type Quick release hose clamp
American Type Quick release hose clamp
American Type Quick release hose clamp
American Type Quick release hose clamp
American Type Quick release hose clamp
American Type Quick release hose clamp

American Type Quick release hose clamp

American type quick release hose clamp is ideal for the application where the clamp must be open for installation. These quick release hose clamp are perfect for rapid installation and removal in restricted or difficult areas. It widely used in telecommunications and cable installation industries. Only need three steps: 1. Clamp around the object. 2. Slip band through housing. 3. Snap screw down and tighten.



Contact Us Now
Products
Set A Consultation Today
*We respect your confidentiality and all information are protected.
Send
Description
Reviews

Structure Diagram

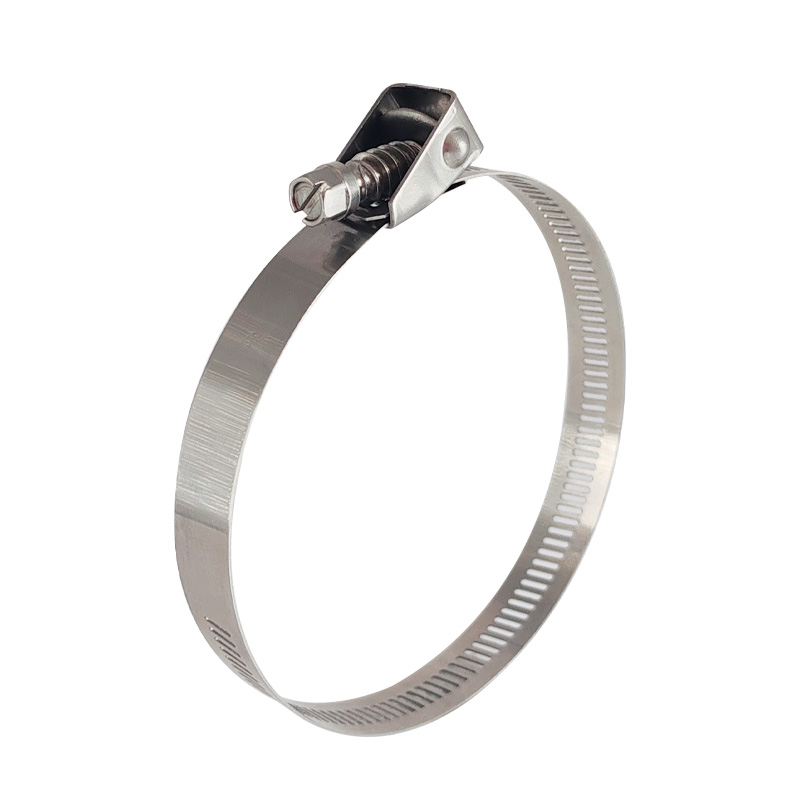

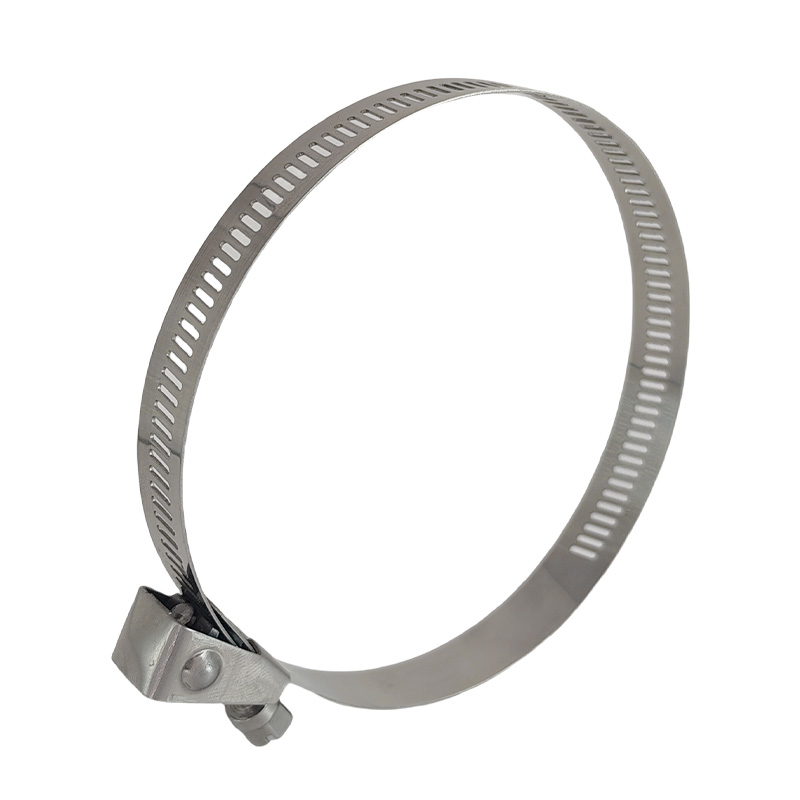

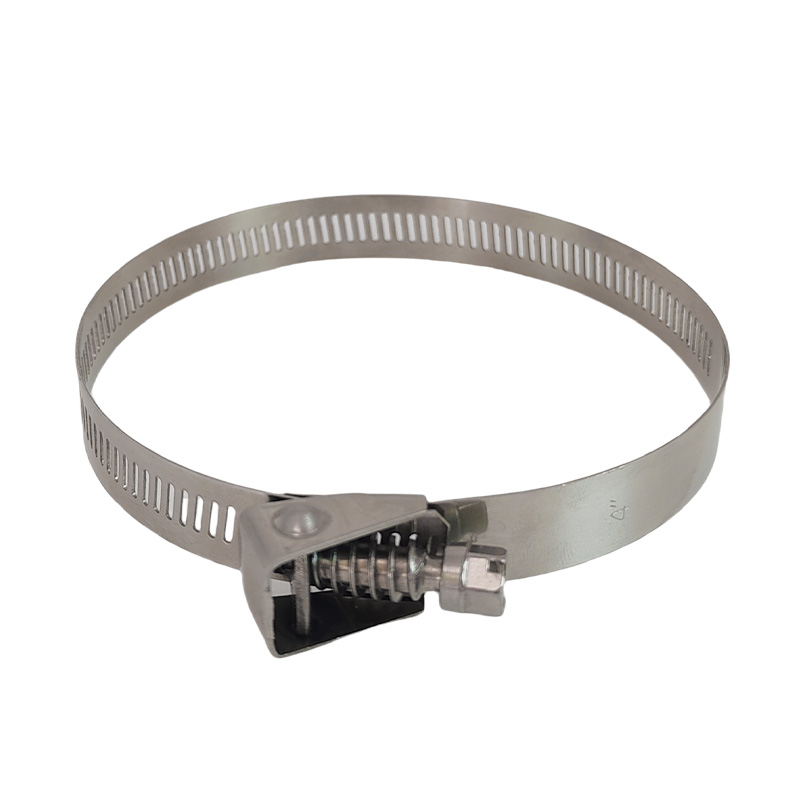

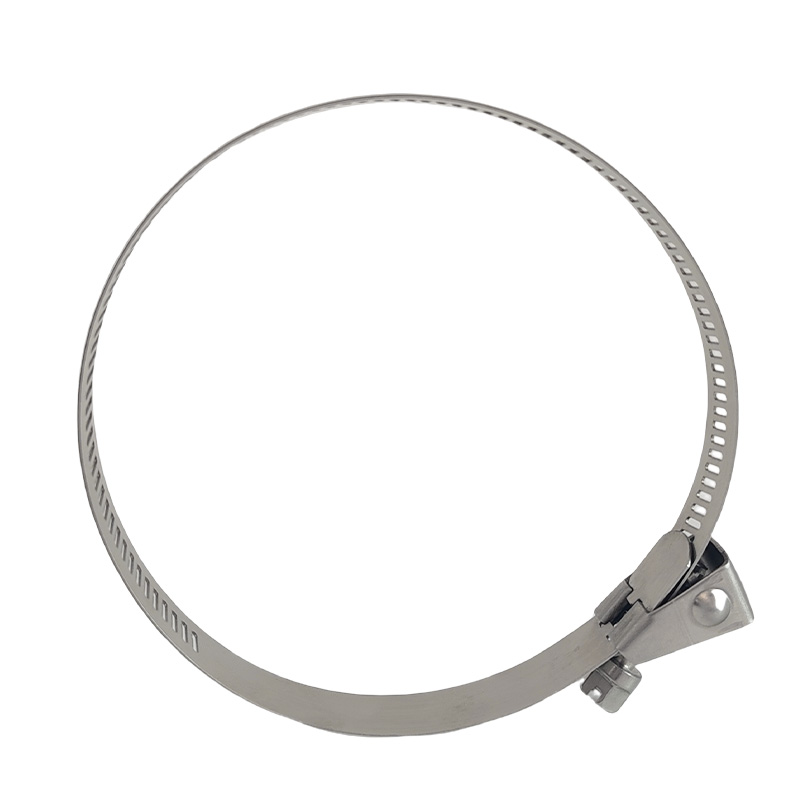

UDQRA American Type Quick release hose clamp

Feature

  • American type quick release hose clamp is ideal for the application where the clamp must be open for installation. These quick release hose clamp are perfect for rapid installation and removal in restricted or difficult areas. It widely used in telecommunications and cable installation industries. Only need three steps: 1. Clamp around the object. 2. Slip band through housing. 3. Snap screw down and tighten.

    l Easy to install and remove, it will be open when installation

    l Bandwidth: 12.7mm and 14mm

    l Thickness: 0.6mm

    l Size can be customized as demand.

    l Load torque: 7.5N.m min

    l Material: W2, W4

    l Application: Widely used in telecommunications and cable installation industries.

Parameters

UD NO. Size Min(in) Max(in) Min(mm) Max(mm)
UDQRA-1-1332 12 1/2 1-1/4 13 32
UDQRA-1-1944 20 3/4 1-3/4 19 44
UDQRA-1-2751 24 1-1/16 2 27 51
UDQRA-1-2557 28 1 2-1/4 25 57
UDQRA-1-2570 36 1 2-3/4 25 70
UDQRA-1-3989 48 1-1/2 3-1/2 39 89
UDQRA-1-25102 56 1 4 25 102
UDQRA-1-51127 72 2 5 51 127
UDQRA-1-1332 88 2 6 51 152
UDQRA-1-45178 104 2-7/8 7 45 178
UDQRA-1-45197 116 1-3/4 7-3/4 45 197
UDQRA-1-45216 128 1-3/4 8-1/2 45 216
UDQRA-1-45228 136 1-3/4 9 45 228
UDQRA-1-51254 152 2 10 51 254
UDQRA-1-51311 188 2 12-1/4 51 311
UDQRA-1-333381 232 13-1/8 15 333 381
Material Band Housing Screw
W2 201/304SS 201/304SS Zinc plated steel
W4 201/304SS 201/304SS 201/304SS
