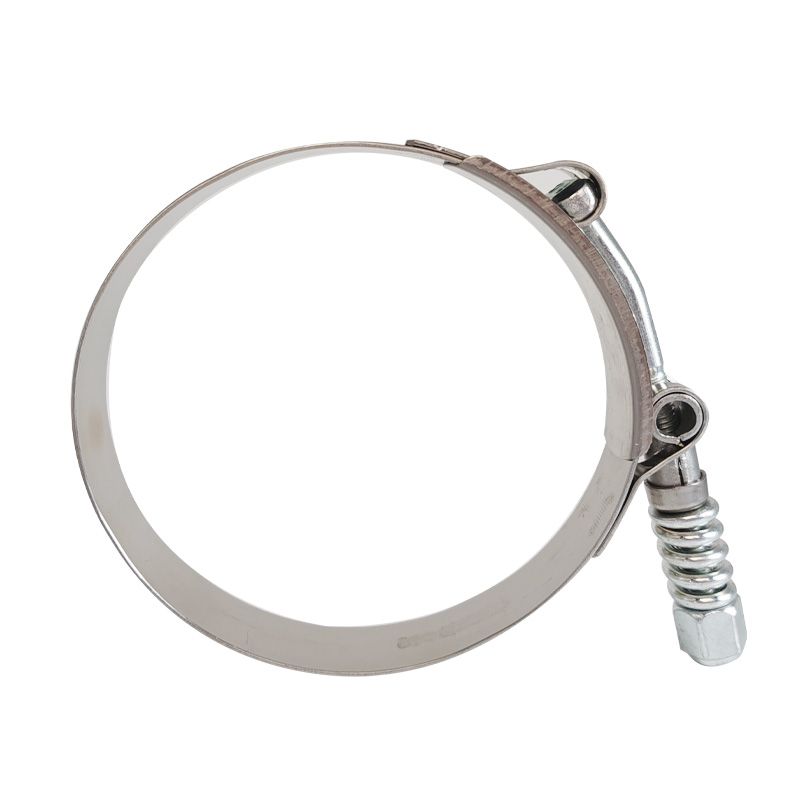

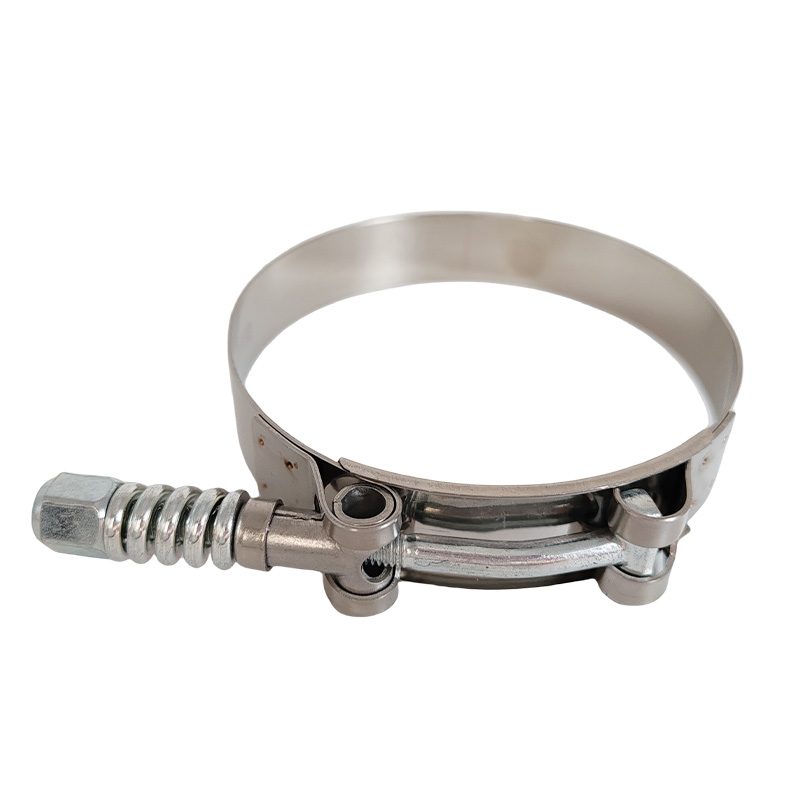

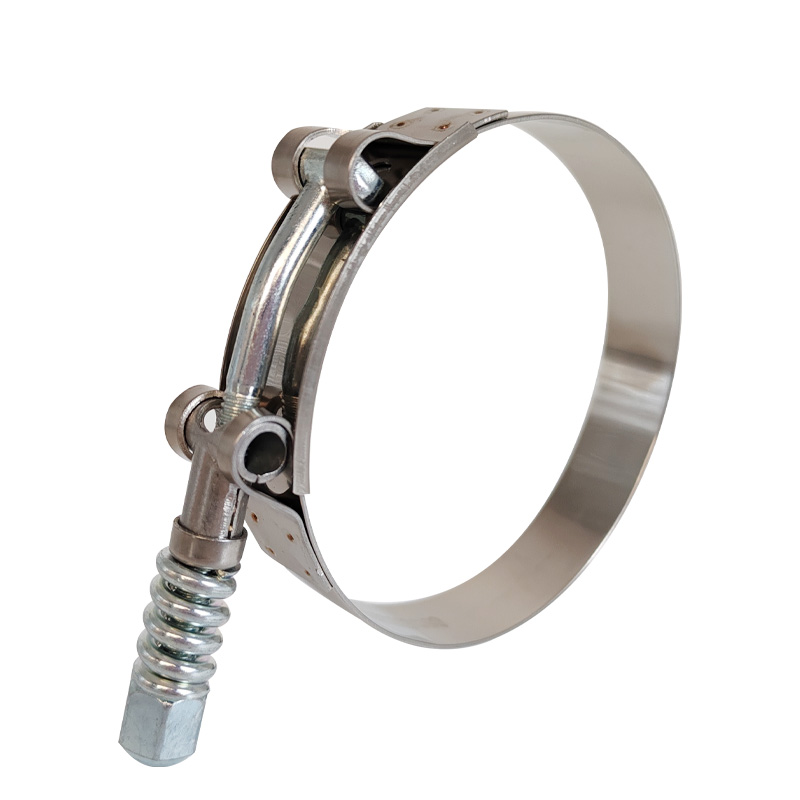

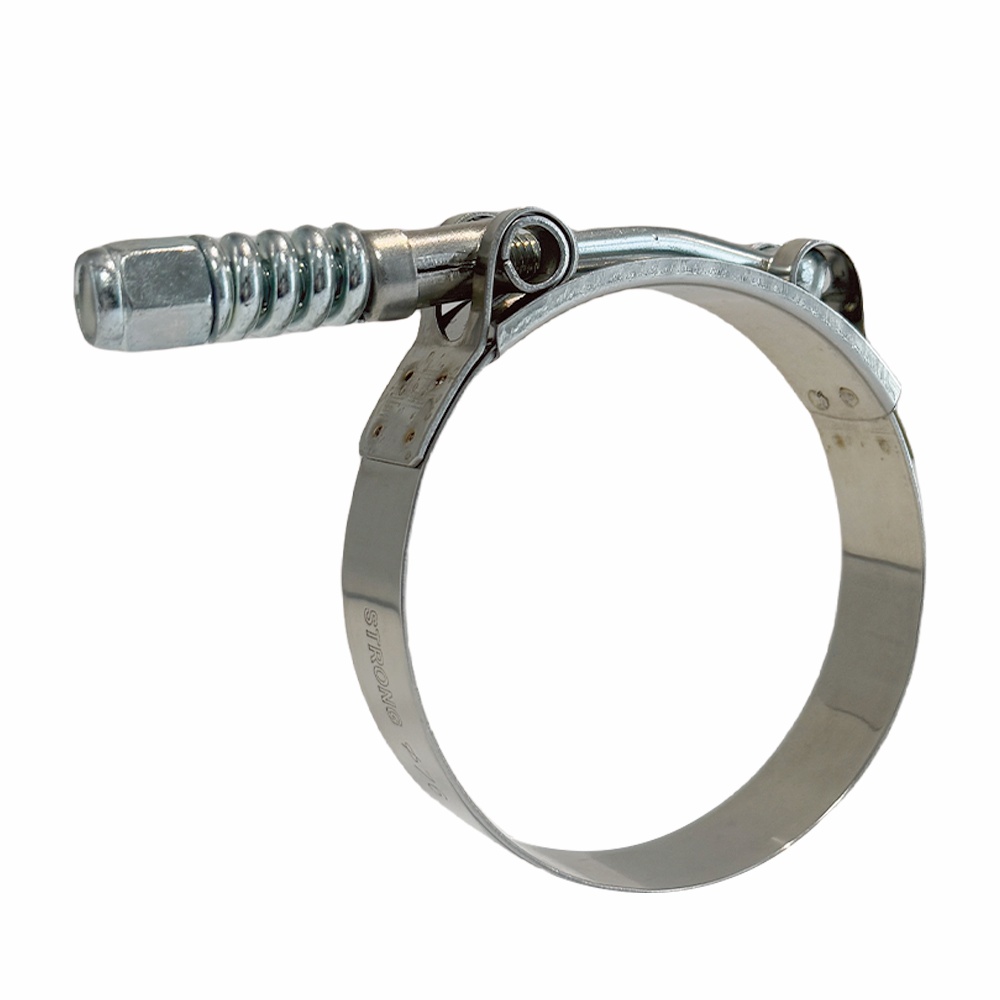

T-bolt clamp with spring can provide constant tension performance to compensate for the expansion and contraction when temperatures fluctuate. Provides high strength and a 360°seal. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, off road equipment, agricultural irrigation and machinery, for air intake and coolant adapter.
.png)
T-bolt clamp with spring can provide constant tension performance to compensate for the expansion and contraction when temperatures fluctuate. Provides high strength and a 360°seal. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, off road equipment, agricultural irrigation and machinery, for air intake and coolant adapter.
lThe overall shape of the T-type throat hoop is in the shape of "T",Built-in spring element
lThe spring is compressed and the band tightened to firmly clamp the fixed object.
lBandwidth*thickness：19mm*0.6mm
lSize：35-40mm to all
lScrew：M6*75mm
lLoading Torque：20N.m
lSurface：Polishing/Zinc-plated
lMaterial：Stainless steel:200 series and 300 series/galvanized iron
lApplication：High vibration and large diameter applications common in heavy trucks, industrial machinery, off road equipment, agricultural irrigation and machinery, for air intake and coolant adapter.
