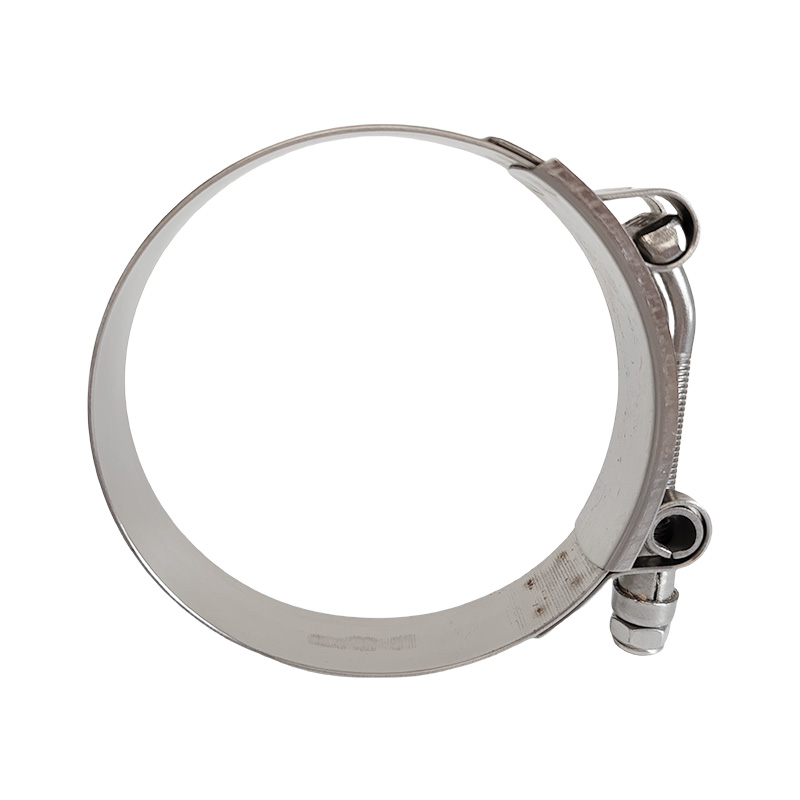

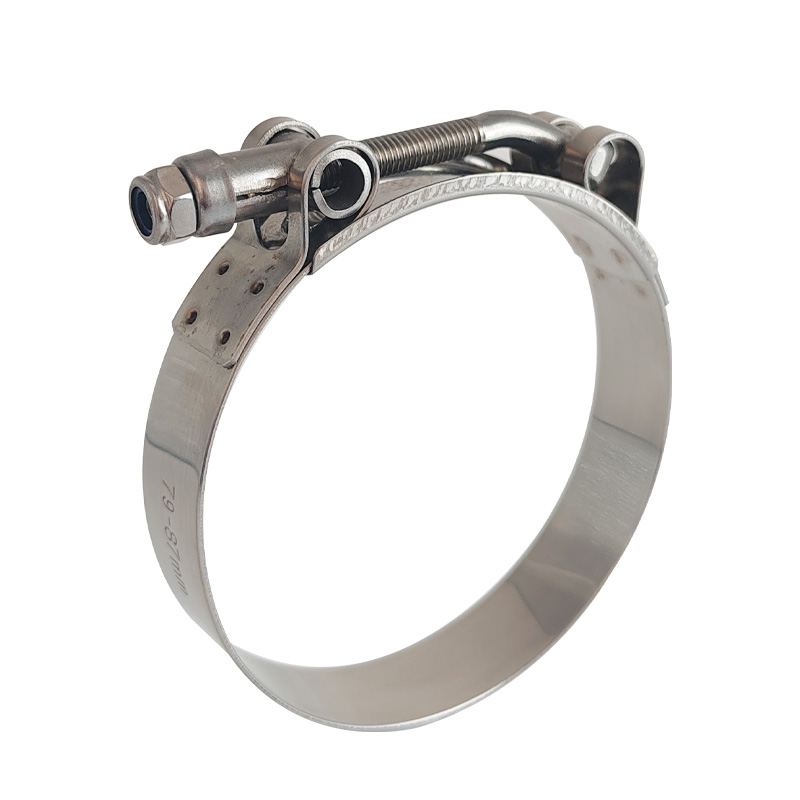

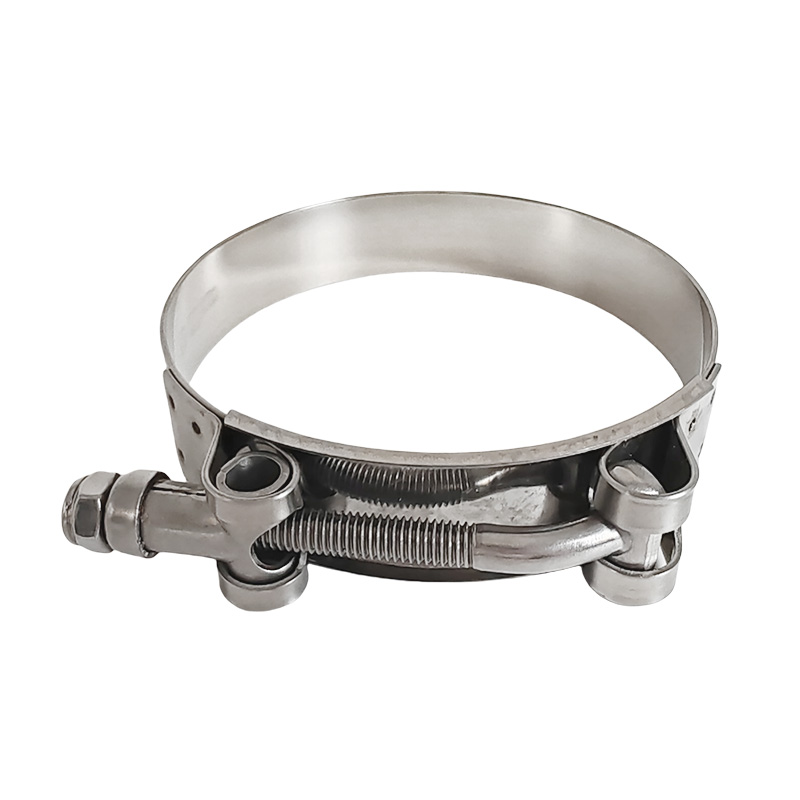

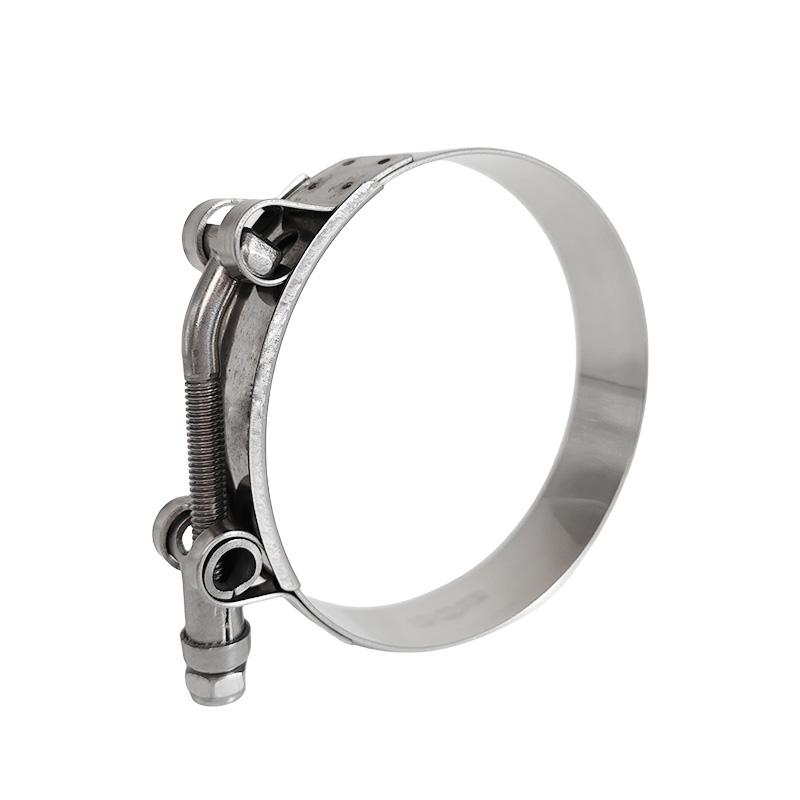

T Bolt Hose Clamps
Heavy Duty T-Bolt Clamps
Heavy Duty T-Bolt Clamps
Heavy Duty T-Bolt Clamps
Heavy Duty T-Bolt Clamps
Heavy Duty T-Bolt Clamps
Heavy Duty T-Bolt Clamps
Heavy Duty T-Bolt Clamps
Heavy Duty T-Bolt Clamps

Heavy Duty T-Bolt Clamps

T-Bolt clamps are designed to provide connections without leaks, provide a quick,

yet effective means of clamping a variety of fittings to a wide range of hose. It has high strength, reliable clamp with numerous applications: commercial and industrial markets

including hose and ductwork connections for air, oil, water, other types of low pressure fluid lines, engine air intake, exhaust, hose and filters.



Contact Us Now
Set A Consultation Today
*We respect your confidentiality and all information are protected.
Send
Description
Reviews

Structure Diagram

T-Bolt Clamps

Feature

  • T-Bolt clamps are designed to provide connections without leaks, provide a quick,

    yet effective means of clamping a variety of fittings to a wide range of hose. It has high strength, reliable clamp with numerous applications: commercial and industrial markets

    including hose and ductwork connections for air, oil, water, other types of low pressure fluid lines, engine air intake, exhaust, hose and filters.



    lThe overall shape of the T-type throat hoop is in the shape of "T", which is composed of the main part and the transverse fastening part.

    lThe design of the T-shaped structure enables a more even distribution of pressure when locked.

    lBandwidth*thickness19mm*0.6mm

    lSize35-40mm to all

    lScrewM6*75mm

    lLoading Torque20N.m

    lSurfacePolishing/Zinc-plated

    lMaterialStainless steel:200 series and 300 series/galvanized iron

    lApplicationCommercial and industrial markets including hose and ductwork connections for air, oil, water, other types of low pressure fluid lines, engine air intake, exhaust, hose and filters.

Parameters

Size(mm) W*T(mm) UD NO. PCS/Bag Pcs/CTN
35-40 19*0.6 UDTB-3540 10 300
38-43 19*0.6 UDTB-3843 10 300
41-46 19*0.6 UDTB-4146 10 300
44-51 19*0.6 UDTB-4451 10 300
48-56 19*0.6 UDTB-4856 10 200
51-59 19*0.6 UDTB-5159 10 200
54-62 19*0.6 UDTB-5462 10 200
57-65 19*0.6 UDTB-5765 10 200
60-68 19*0.6 UDTB-6068 10 200
63-71 19*0.6 UDTB-6371 10 200
67-75 19*0.6 UDTB-6775 10 200
70-78 19*0.6 UDTB-7078 10 200
73-81 19*0.6 UDTB-7381 10 200
76-84 19*0.6 UDTB-7684 10 200
79-87 19*0.6 UDTB-7987 10 200
83-91 19*0.6 UDTB-8391 10 200
86-94 19*0.6 UDTB-8694 10 100
89-97 19*0.6 UDTB-8997 10 100
92-100 19*0.6 UDTB-92100 10 100
95-103 19*0.6 UDTB-95103 10 100
102-110 19*0.6 UDTB-102110 10 100
Sizes can be adjusted as per enquiry.
Material Band Bridge Trunnion Cap Nut Bolt
W2 304ss 304ss Zinc plated Zinc plated Zinc plated Zinc plated
W4 304ss 304ss 304ss 304ss 304ss 304ss
