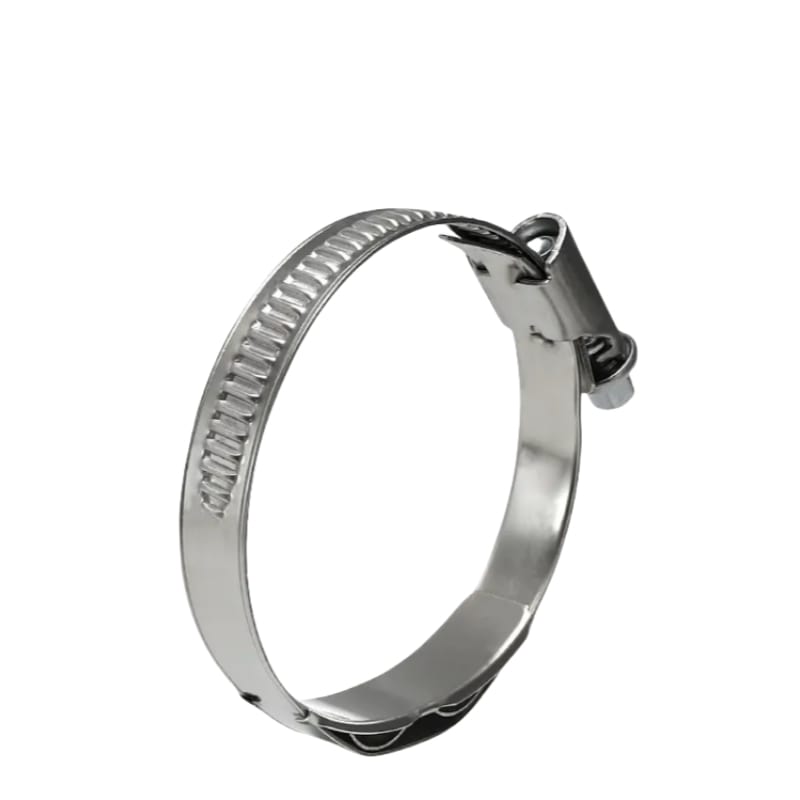

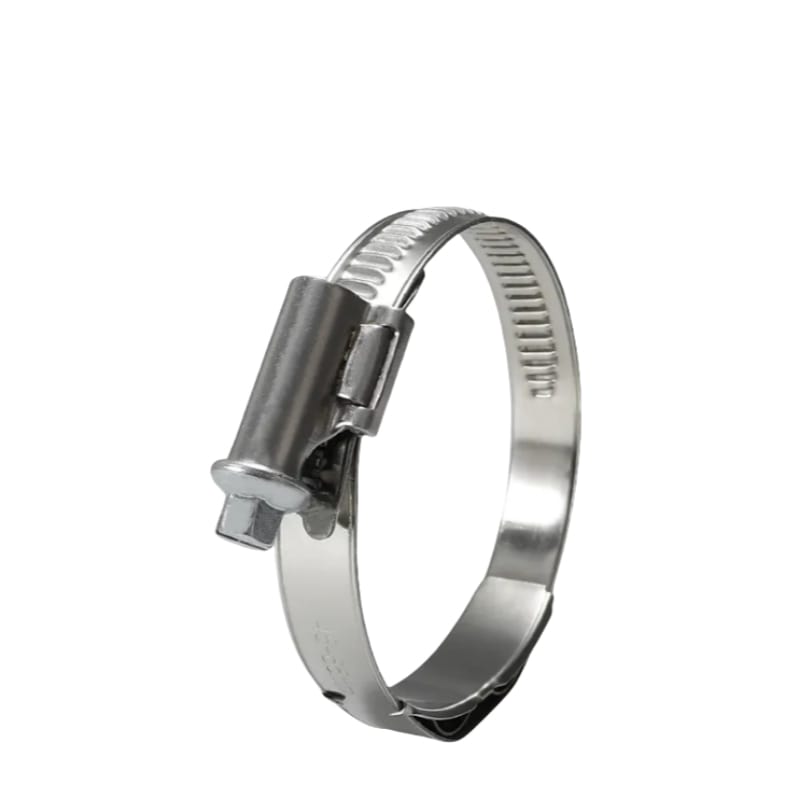

Worm drive hose clamp with spring also called German type off-center head hose clamp, can delivers higher clamping force at lower torque. This design is an ideal choice for applications subject to extreme temperature variations, ensuring the maintenance of consistent tension and reliability.
.png)

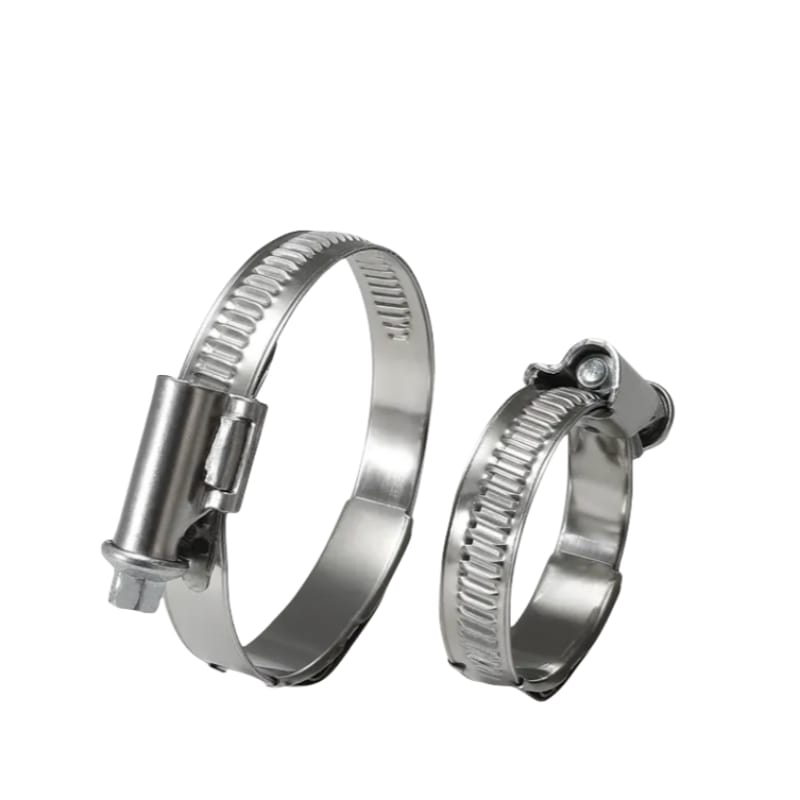

The difference between the German-style eccentric head and the general worm gear clamp is that it is specially designed to prevent the hose from being damaged during the installation process. It can be placed in a limited space, and the superior torque and evenly distributed clamping pressure can be maintained. Long-term seal.
l Simple appearance, built-in spring.
l The loading of the spring enables the hose band to automatically adapt to pipes or components of different diameters.
l Band Width：9/12mm
l Band Thickness: 0.6mm
l Screw Slot: “+” and “-”
l Recommended Tightening Torque: 6N.m
l Size Range: Can be selected from 27 to 190mm
l Application: Widely used in automobiles, tractors, forklifts, locomotives, ships,mines, petroleum, chemicals, pharmaceuticals,agriculture.
