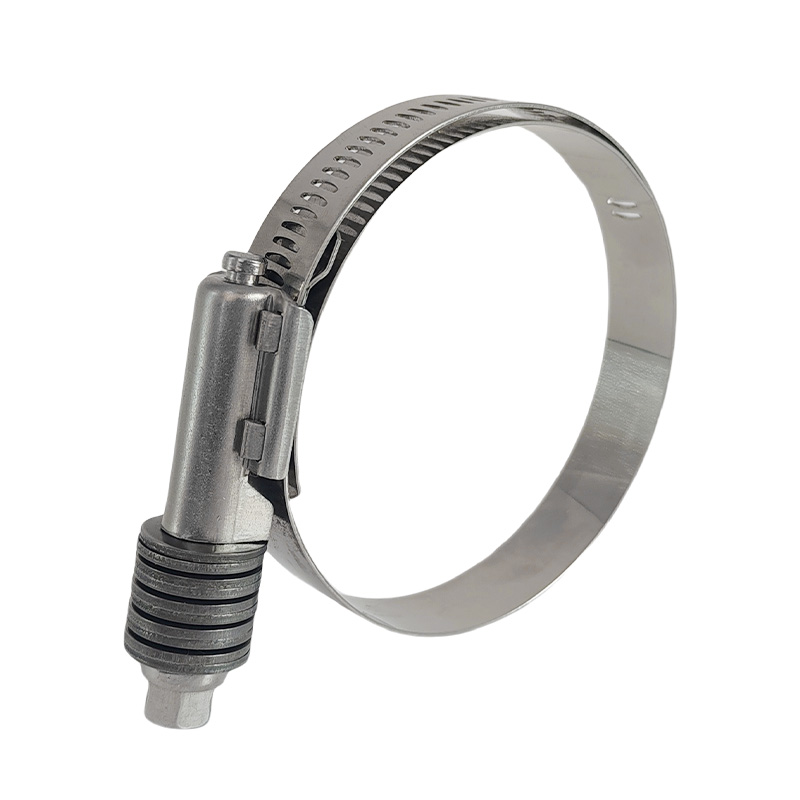

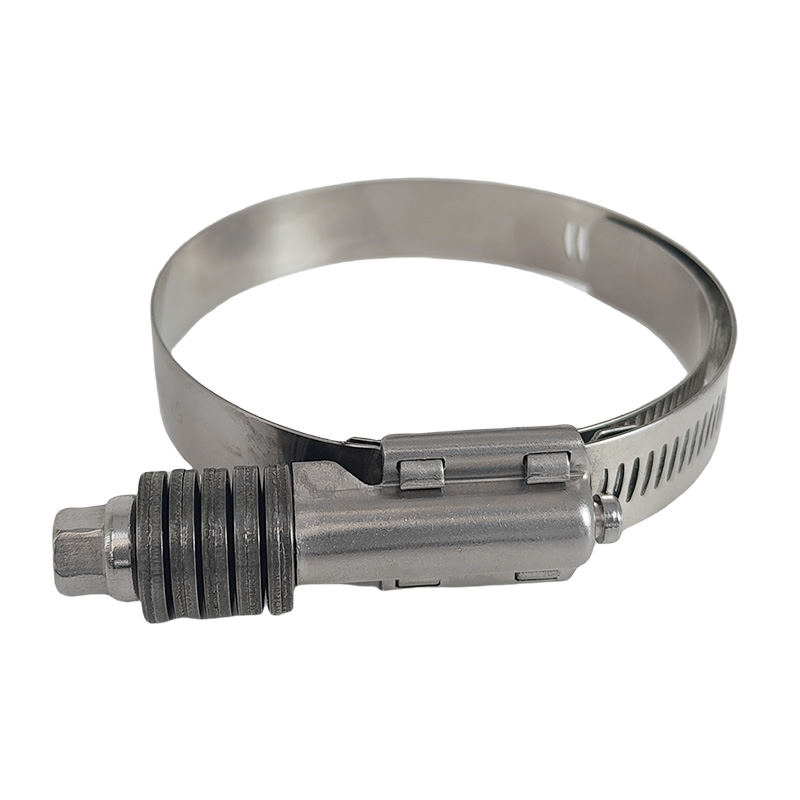

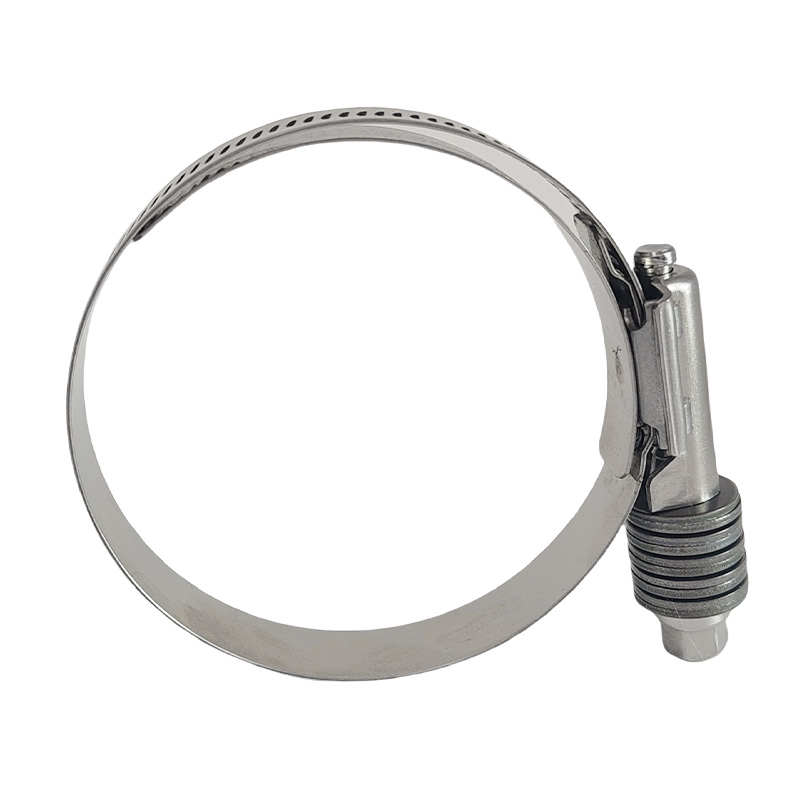

The Constant Tension Belleville Washer is built to adjust for changes in pressure and temperature in the hose line. This stops the clamps from getting loose on the hose and prevents leaks. 2 pieces housing design is suitable for higher torque. The liner prevents direct contact of perforations with hose, protect the hose won’t get damaged when install with high torque.
.png)
The Constant Tension Belleville Washer is built to adjust for changes in pressure and temperature in the hose line. This stops the clamps from getting loose on the hose and prevents leaks. 2 pieces housing design is suitable for higher torque. The liner prevents direct contact of perforations with hose, protect the hose won’t get damaged when install with high torque.
l The constant tension washer is intended to cope with the changes in pressure and temperature
l The liner protect the hose from directly contact with perforation
l Band Width: 0.62"(15.8mm)
l Band Thickness: 0.024" (0.6mm)
l Screw: 5/16" (8mm) Hex screw head
l Recommended Tightening Torque: 11N.m
l No burrs, protect soft hose well
l Standard: SAE
l Application: Widely used in automotive, engine, marine and oil&gas area
