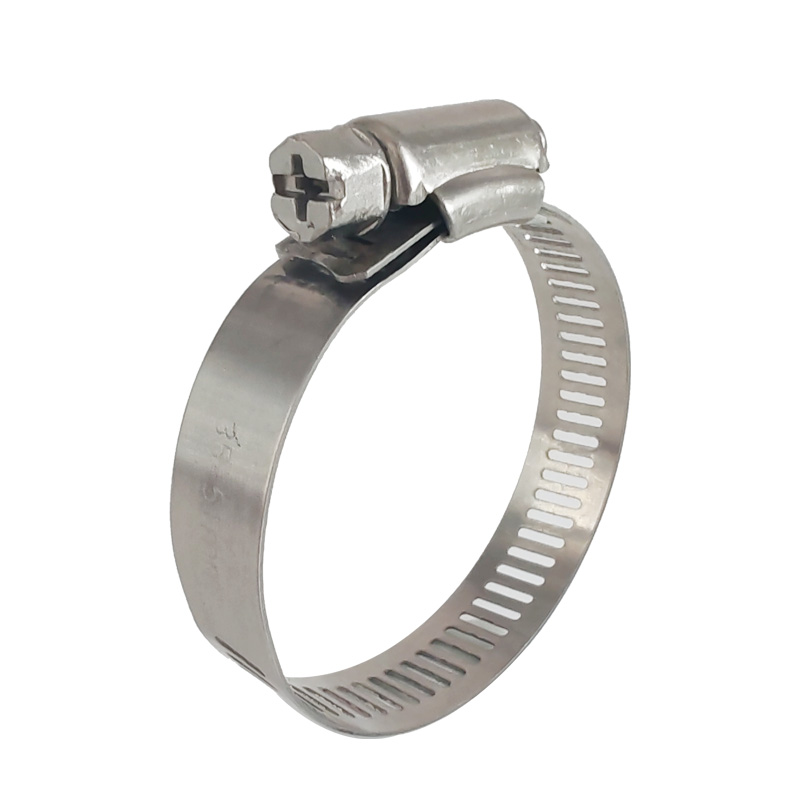

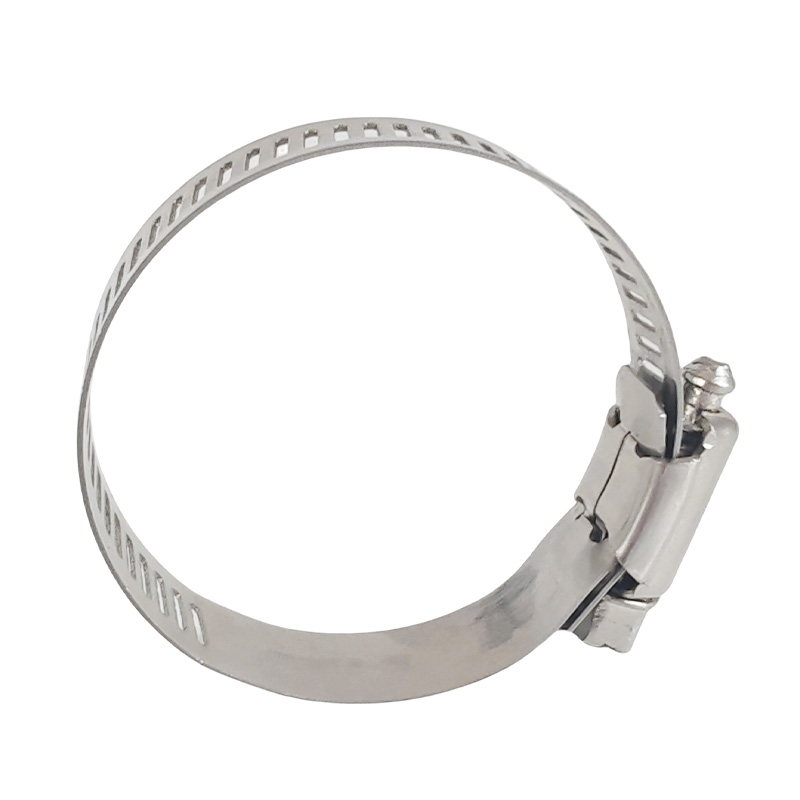

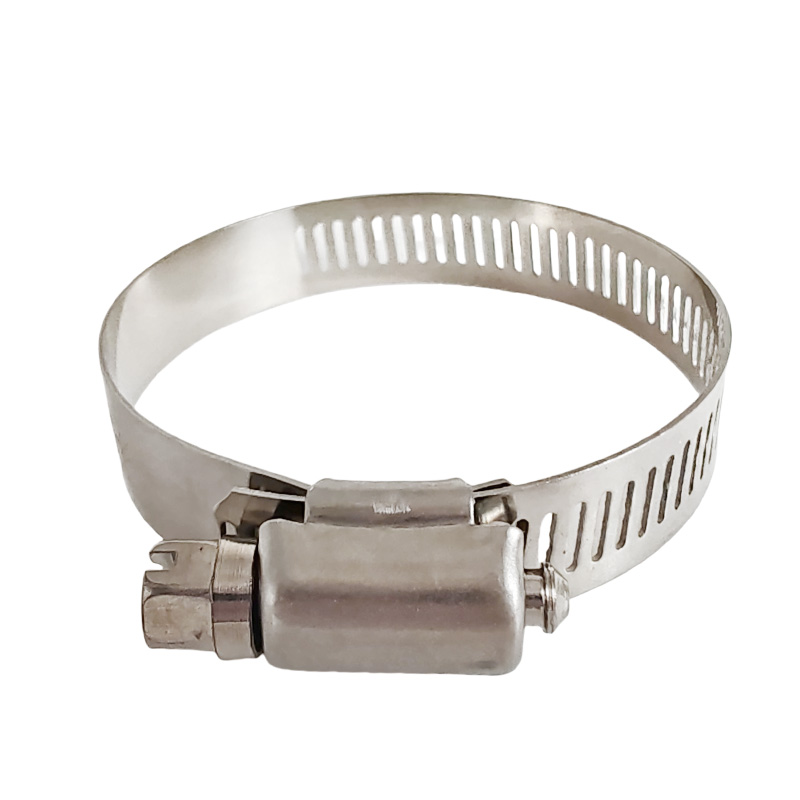

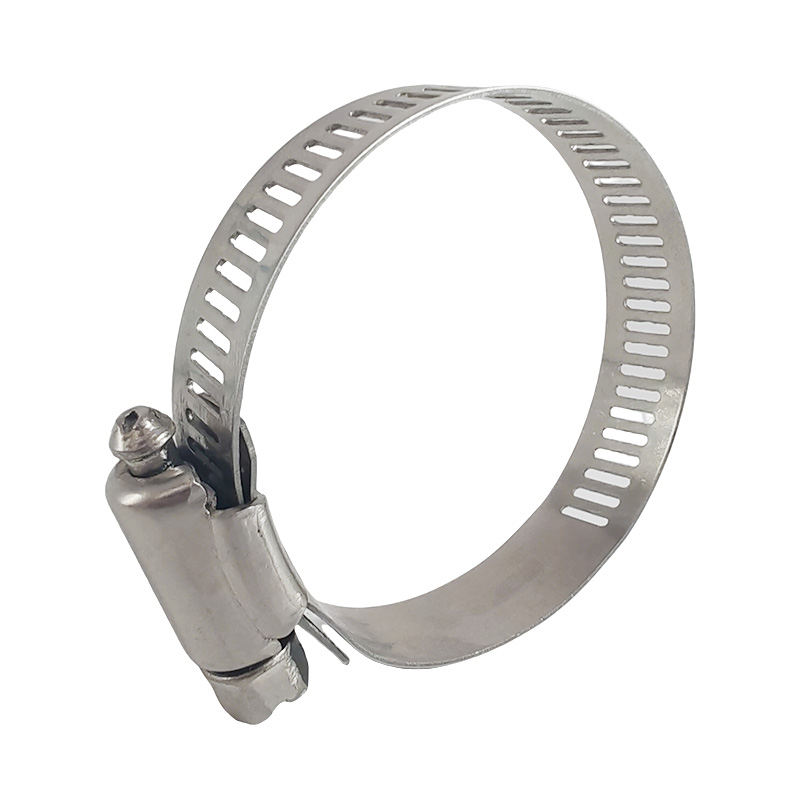

12.7mm W4 American Type Hose Clamp With Cross Screw
12.7mm W4 American Type Hose Clamp With Cross Screw
12.7mm W4 American Type Hose Clamp With Cross Screw
12.7mm W4 American Type Hose Clamp With Cross Screw
12.7mm W4 American Type Hose Clamp With Cross Screw
12.7mm W4 American Type Hose Clamp With Cross Screw
12.7mm W4 American Type Hose Clamp With Cross Screw
12.7mm W4 American Type Hose Clamp With Cross Screw

12.7mm W4 American Type Hose Clamp With Cross Screw

1/2"(12.7mm) Worm drive hose clamp is suitable for medium duty surfaces. It has wide diameter range and various material. Widely used in all area, from home usage to heavy industry.



Contact Us Now
Products
Set A Consultation Today
*We respect your confidentiality and all information are protected.
Send
Description
Reviews

Structure Diagram

1/2

Feature

  • 1/2"(12.7mm) Worm drive hose clamp is suitable for medium duty surfaces. It has wide diameter range and various material. Widely used in all area, from home usage to heavy industry.

    l Medium duty surface, has wide diameter range.

    l Ensure tight and leak-free seal

    l Band Width: 1/2"(12.7mm)

    l Band Thickness: 0.024" (0.6mm)

    l Screw: 5/16" (8mm) Hex slotted or cross screw head

    l Recommended Tightening Torque: 6.5N.m

    l No burrs, protect soft hose well

    l Standard: SAE

    l Application: Widely used in all area, automotive, hydraulic, industry, marine and household.

Parameters

UD No. SAE Size Min Dia (in) Max Dia (in) Min Dia (mm) Max Dia (mm)
UD12A-06 06 7/16 25/32 11 20
UD12A-08 08 7/16 1 11 25
UD12A-10 10 1/2 1 1/16 13 27
UD12A-12 12 1/2 1 1/4 13 32
UD12A-16 16 11/16 1 1/2 18 38
UD12A-20 20 3/4 1 3/4 19 44
UD12A-24 24 1 2 25 51
UD12A-28 28 1 1/4 2 1/4 32 57
UD12A-32 32 1 1/2 2 1/2 38 64
UD12A-36 36 1 3/4 2 3/4 44 70
UD12A-40 40 2 3 51 76
UD12A-44 44 2 1/4 3 1/4 57 82
UD12A-48 48 2 1/2 3 1/2 64 89
UD12A-52 52 2 3/4 3 3/4 70 95
UD12A-56 56 3 4 76 101
UD12A-60 60 3 1/4 4 1/4 83 108
UD12A-64 64 3 1/2 4 1/2 89 114
UD12A-72 72 4 5 102 127
UD12A-80 80 4 1/2 5 1/2 114 140
UD12A-88 88 5 6 127 152
UD12A-96 96 5 1/2 6 1/2 140 165
UD12A-104 104 6 7 152 178
Sizes can be adjusted as per enquiry.
Material Band Housing Screw
W1 Zinc plated steel Zinc plated steel Zinc plated steel
W2 AISI 201SS/304SS AISI 201SS/304SS Zinc plated steel
W2B AISI 201SS Zinc plated steel Zinc plated steel
W4 AISI 201SS/304SS AISI 201SS/304SS AISI 201SS/304SS
W5 AISI 316SS AISI 316SS AISI 316SS
